Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580
Mortise Locks
Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580 (1).jpg
Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580 (2).jpg
Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580 (3).jpg
Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580 (4).jpg
Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580 (5).jpg
Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580 (6).jpg

Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580

Unlike other smart locks that only fit smart lock mortise, this keyless smart lock works with traditional mortise locks using a smart retrofit core. Fits 80% of old mechanical locks with no lock body change.IP66 waterproof and compitable with TTlock ble.

    Contact us
    product details
    product description

    description1

    description2

    Discription
    Features
    Compatible Mortise
    FAQ
    Video Guide

    Model

    FM580

    APP options

    TTLock
    Google Home: Support
    Alexa: Supported in specific countries (USA/Australia/Canada/India/UK/France/Italy/Brazil)

    Unlock methods

    Smart phone, Fingerprint, password, RFID card, Key override

    Wireless supported

    Bluetooth BLE (intenet available with gateway)

    Hilight Functions

    IP66 Waterproof

    App compabilities

    Unlock/Lock
    Enrol PIN codes, RFID and fingerprint credentials and make settings
    Share eKeys to family and visitors
    Audit trail in the App to see who accessed your door and when.

    Battery

    4 X AAA Alkaline Batteries - works up to 1 year (10 unlocks per day)
    Type-C port for emergency power via power bank.
    Low battery alert (within App and audible at the lock).

    Security Features:

    Incorrect attempt alert & lockout for added security.
    Anti-peep scramble code prevents the correct code from being seen
    Double verification mode: Requires two verification methods

    Access Capacity

    120 fingerprints / 250 passwords / 1000 cards
    6-9 digits code length

    Operation Modes

    Passage Mode allows your door to remain open when required.
    Double verification mode: Requires two verification method

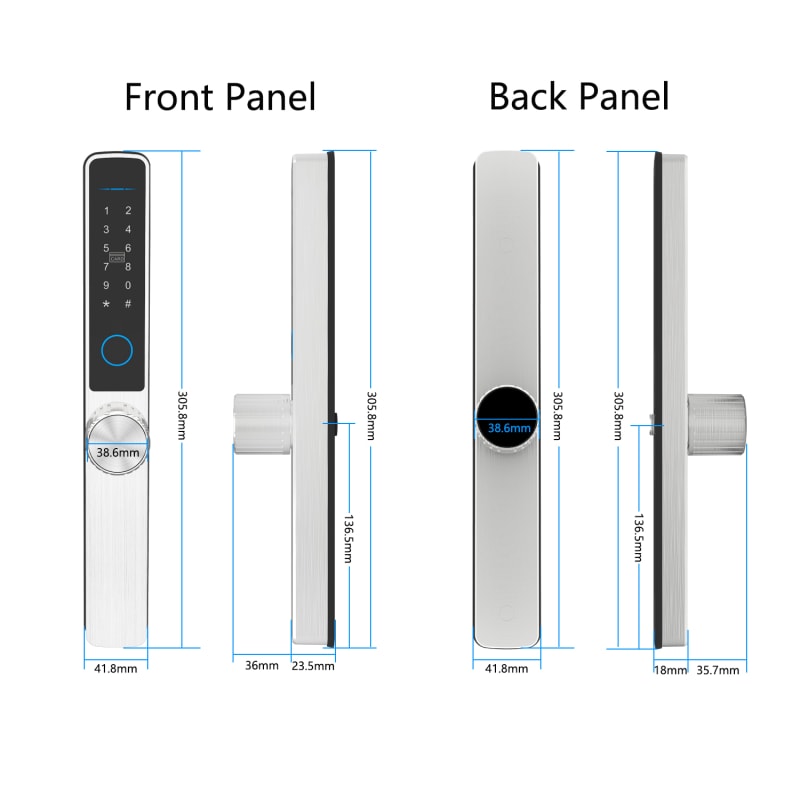

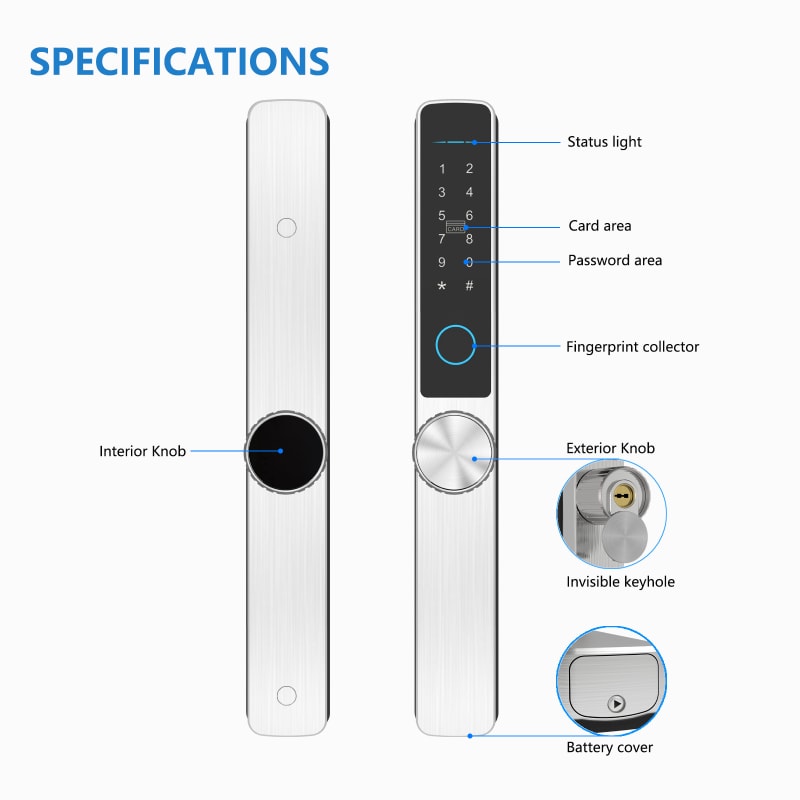

    Physical Specs

    Screen: Acrylic
    Finishing: Brushed nickel and powder coating
    Work Temperature: -20~50°C
    Door Thickness range: 35-65mm



    Reliability & Durability
    Salt Spray Test: 98H for brushed nickel; 300H for powder coating
    Unlock Test: 200,000 Cycles
    Certification: CE
    Waterproof: IP66

    Mortise Fit:

    single latch/5050/72 series/85 series/Israeli mortise

    Packing & Contents

    Inner box packaage

    meas: 41*14*7cm;            G.W.: 2.5 KGS

    Carton package

    meas: 42*29*30cm;       G.W.: 12 KGS              QTY: 8 pcs/carton

    What's in box

    front lock, back lock, cylinder, positioning holder, accessories, user manual,
    2pcs cards, 2pcs mechanical keys
    • Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580 (5)
    • Keyless Entry Door Lock Fits Both Traditional Mortise and Smart Lock Mortise Without Changing Your Lock Body FM580 (6)

    • Smart Lock Overview video FM880

    • Smart Lock User guide video FM880

    • Smart lock Installation guide video FM880

    Secure your home with the FM580, a keyless lock that stands out from the crowd. Unlike other smart locks that only work with smart lock mortise designs, this door keyless lock works with both traditional mortise locks and smart lock mortise locks. Using a smart retrofit core, it can control traditional lock bodies where the handle only operates the latch and the deadbolt works independently. This means you can replace your old mechanical lock without changing the lock body – saving time, labor, and money.

    With an IP66 waterproof rating, this keyless lock withstands heavy rain, high-pressure water jets, and dust – making it ideal for patios, balconies, and backyard entrances. It fits door thickness from 35mm to 65mm and operates reliably in temperatures from -20°C to 50°C.

    Durability is at the core of this door keyless lock. The brushed nickel and powder coating finishes offer excellent corrosion resistance, with the powder coating tested to 300 hours of salt spray protection. Unlike most locks that stop at 100,000 cycles, the FM580 is tested to 200,000 unlock cycles and CE certified, so you can count on it for years of daily use.

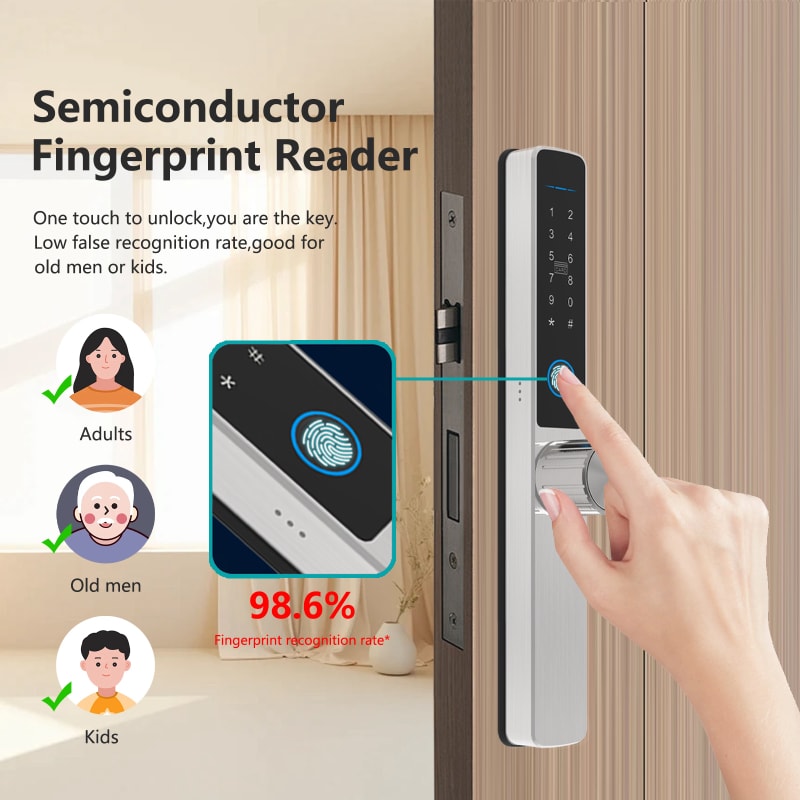

    Stop carrying keys. The FM580 offers five ways to unlock: smartphone, fingerprint, password, RFID card, and a mechanical backup key for emergencies. The fingerprint sensor provides instant one-touch access, while the anti-peep scramble code protects your password from prying eyes. You can share permanent or temporary eKeys with family members, guests, or service providers through the TTLock app.

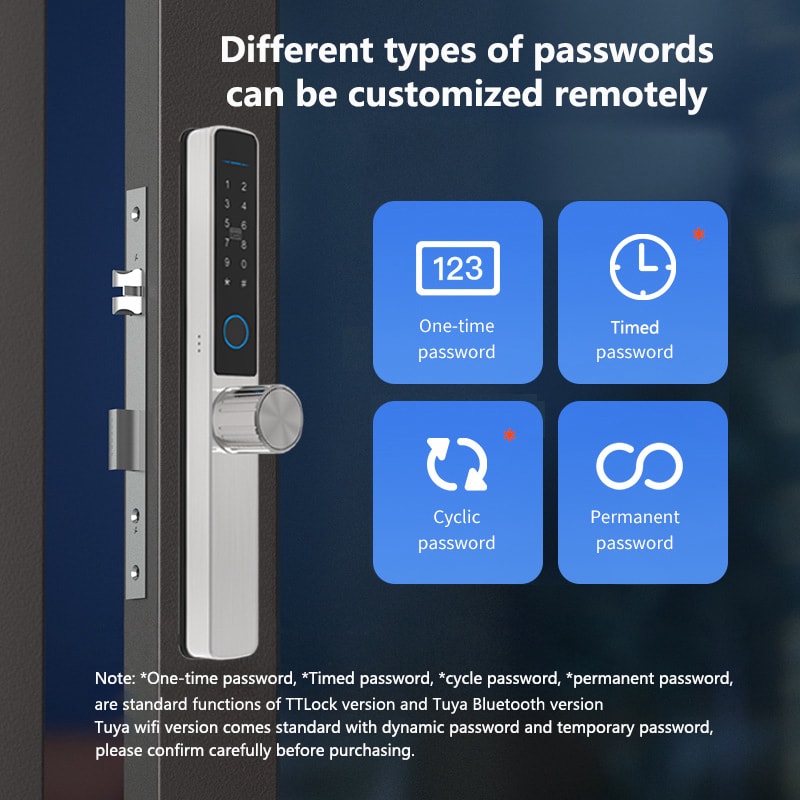

    The TTLock app works via Bluetooth BLE and supports remote access when paired with a gateway. It also works with Google Home, plus Alexa in select countries including the USA, Australia, Canada, India, the UK, France, Italy, and Brazil. The app lets you lock or unlock remotely, manage access schedules, and view the audit trail to see who opened the door and when.

    Security features include double verification mode, incorrect attempt lockout, and a tamper alarm. Passage mode lets you keep the door unlocked during busy events. Low battery alerts and a Type-C port for emergency power ensure you are never locked out. Whether you need a keyless lock for your front door, a rental property, or a backyard entrance, the FM580 delivers rugged durability, weather resistance, and smart convenience in any climate.

    Frequency Ask Question

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582
