Mortise Locks

Front Door Keypad Lock with Fingerprint and Doorbell B2

Stop hiding keys under the mat. This keyless lock opens with your fingerprint or a code. The electronic peephole gives you a clear view of visitors. Connect via TTlock BLE or Tuya WiFi or Zigbee. A smart finger lock that belongs on your front door. One of the better Wi-Fi locks for any home.

product details

product description

description1

description2

Discription

Features

Compatible Mortise

FAQ

Video Guide

Model	B2
APP options	Tuya, TTLock // All TT models support Google Home. Among them, the United States, Australia, Canada, India, the United Kingdom, France, Italy and Brazil support Alexa.
Unlock methods	Smart phone, Fingerprint, password, RFID card, Key override
Wireless supported	TTlock：Bluetooth BLE (intenet available with gateway) Tuya：WIFI, Zigbee
Hilight Functions	The electronic peephole is an optional configuration (video intercom is not supported). (1MP camera) Supports remote unlocking
App compabilities	Unlock/Lock Enrol PIN codes, RFID and fingerprint credentials and make settings Share eKeys to family and visitors. Audit trail in the App to see who accessed your door and when.
Battery	4 X AA Alkaline Batteries - works up to 1 year (10 unlocks per day) USB-C port for emergency power via power bank. Low battery alert
Security Features:	Incorrect attempt alert & lockout for added security. Anti-peep scramble code prevents the correct code from being seen Double verification mode: Requires two verification methods Tamper alarm to prevent someone from prying and breaking the lock Indoor lockout function
Access Capacity	TUYA WIFI：100 fingerprint, 200 card + password TT LOCK BLE:120 fingerprint,200 card,150 password 4-8 digits code length
Operation Modes	Passage Mode allows your door to remain open when required. Double verification mode: Requires two verification method
Physical Specs	Housing Material: Aluminum alloy Screen: Acrylic Finishing: Baking paint Work Temperature: -20℃-50℃ Door Thickness range: 35-60mm
Reliability & Durability	Salt Spray Test: 98H Unlock Test: 100,000 Cycles Certification: CE Waterproof rating:IP54
Dimention

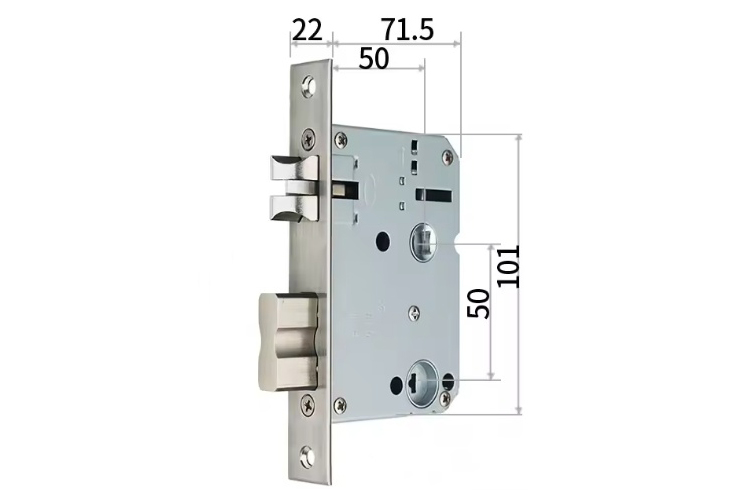

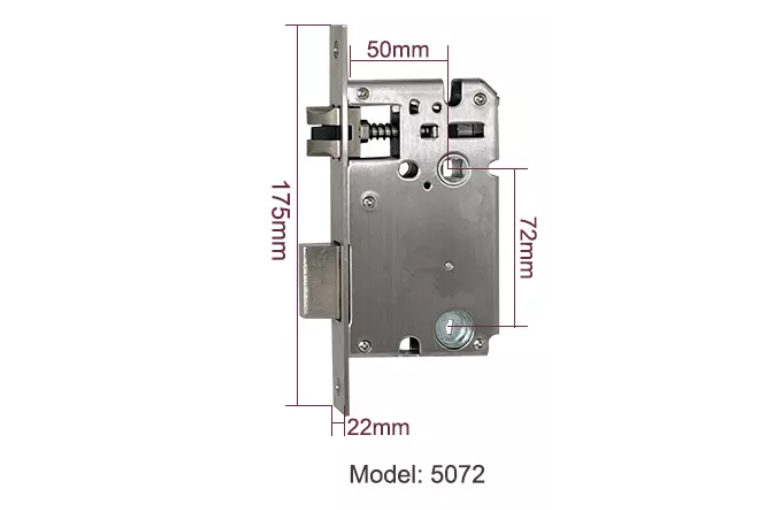

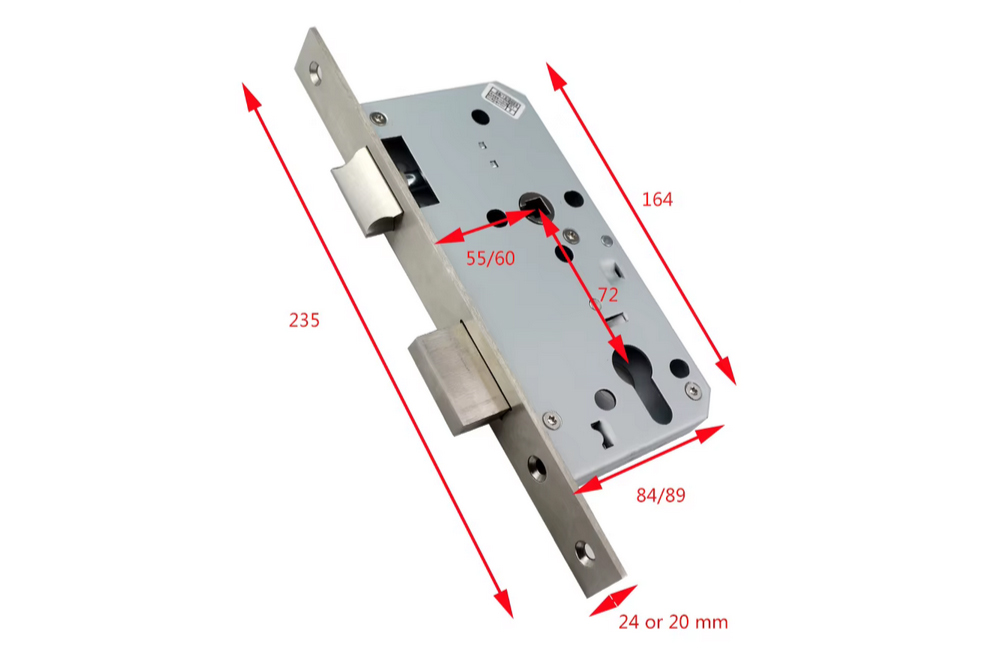

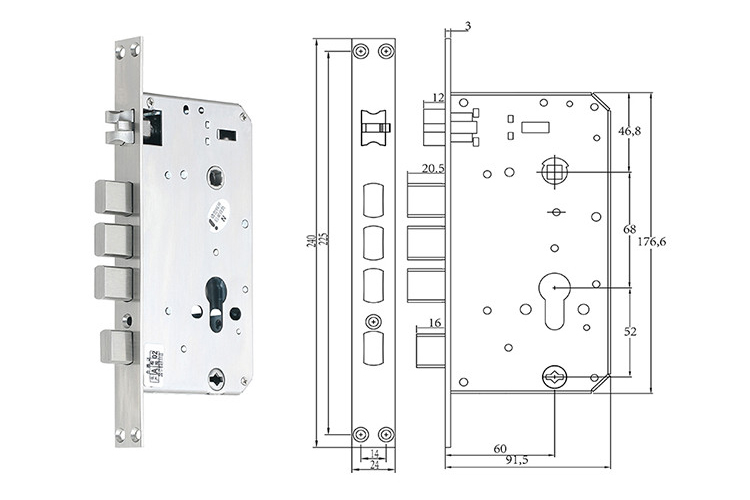

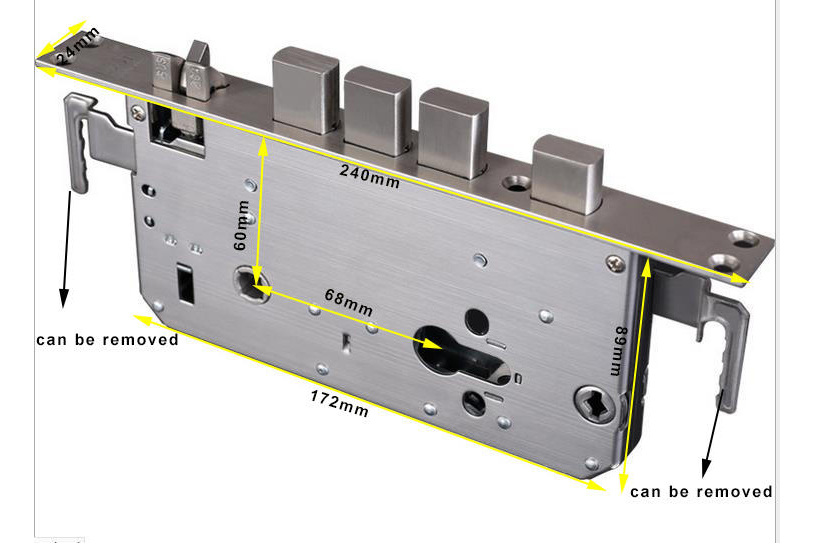

Mortise Fit:	60/70 mortise、5050、5072、5572、 6072、4585、6085
Packing & Contents
Inner box packaage	meas: 36.81812.7cm; G.W.: 2 KGS
Carton package	meas: 673839.5cm; G.W.: 20 KGS QTY:10 pcs/carton
What's in box	Instruction manual, drilling diagram, key, RFID card, lock body，accessories bag

Smart Lock Overview video FM880
Smart Lock User guide video FM880
Smart lock Installation guide video FM880

Your front door is the gateway to everything you care about. The B2 turns that gateway into something smarter — without making you replace your existing door or drill weird holes.

A True Keypad Entry Lock for Your Front Door

Let us start with the basics. The B2 is a front door keypad lock that gives you multiple ways to get in. Type a 4 to 8 digit code on the key pad lock for door. The anti-peep scramble code means you can add random numbers before and after your real code. Anyone watching still cannot guess your password.

Prefer touch? The fingerprint sensor works in under a second. This fingerprint lock stores up to 120 fingerprints on TTlock or 100 on Tuya. That is enough for the whole family plus regular visitors.

You also get RFID cards for kids or older family members, a physical key for emergencies, and full app control. This is not just a keyless lock — it is a complete access system.

Electronic Peephole That Sees More

The B2 offers an optional electronic peephole with a 1MP camera. Unlike a traditional peephole, you do not have to press your eye against the door. Open the app and see who is outside. Check if a package arrived. See if the kids made it home. While video intercom is not supported, the peephole gives you a clear view whenever you need it.

Your Choice of Connectivity

Here is where the B2 gets really flexible. You can choose how you want to connect.

Prefer TTlock BLE? Use Bluetooth for nearby control, or add a gateway for remote access from anywhere. TTlock models also support Google Home for voice control in most countries.

Prefer Tuya? You get a choice of WiFi or Zigbee. WiFi gives you direct remote access without extra hardware. Zigbee connects to your existing smart home mesh for a more stable network.

Either way, this becomes a digital front door lock you can control from anywhere. Lock or unlock remotely. Share eKeys to family and visitors. Check the audit trail to see who accessed your door and when.

A Smart Lock with Passage Mode

The B2 is what you might call a smart smart lock — it adapts to how you live. Turn on passage mode and your door stays unlocked during the day. Perfect for moving furniture, hosting a party, or running a small shop. Turn it off at night, and full security returns.

The lock is built on a 60/70 mortise and fits a wide range of door prep sizes, including 5050, 5072, 5572, 6072, 4585, 6085, and 7054 mortise. Door thickness from 35mm to 60mm is supported.

Security You Can Count On

Security features go beyond just locking the door. Double verification mode requires two methods to unlock — fingerprint plus code, or card plus fingerprint. A tamper alarm sounds if someone tries to pry the lock open. Too many wrong attempts trigger a lockout and alert. The indoor lockout function gives you privacy when you are home.

Built to Last

The housing is aluminum alloy with a baking paint finish. It works in temperatures from -20°C to 50°C. Four AA batteries last about one year with normal use. A low battery alert warns you before they die. The USB-C port accepts emergency power from any power bank.

The Bottom Line

If you want a front door keypad lock that works as a fingerprint lock, a keyless lock, and an electronic front door lock — with your choice of TTlock BLE or Tuya WiFi/Zigbee, passage mode, and wide mortise compatibility — the B2 is the automatic front door lock your home deserves.

Frequency Ask Question

Q1 Is this lock waterproof?

-- No, but we have other waterproof model, such as FM581, FM582

Q1 Is this lock waterproof?

-- No, but we have other waterproof model, such as FM581, FM582

Q1 Is this lock waterproof?

-- No, but we have other waterproof model, such as FM581, FM582

Q1 Is this lock waterproof?

-- No, but we have other waterproof model, such as FM581, FM582
