Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6
Mortise Locks
Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6 (1).jpg
Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6 (2).jpg
Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6 (3).jpg
Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6 (4).jpg
Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6 (5).jpg
Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6 (6).jpg
Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6 (7).jpg

Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6

This fingerprint smart lock is designed for thermal break aluminum doors. IP66 waterproof for outdoor use and built to last. Works with TTLock ble and Tuya wifi. Unlock with fingerprint, password, RFID, phone,ekey or backup key.

    Contact us
    product details
    product description

    description1

    description2

    Discription
    Features

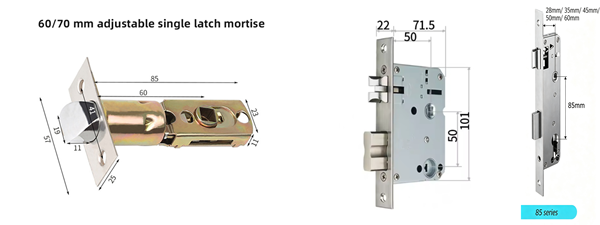

    Compatible Mortise
    FAQ
    Video Guide

    Model

    F6

    APP options

    Tuya, TTLock
    Google Home: TTLock supports, Tuya does not support
    Alexa: TTLock supported in specific countries (USA/Australia/Canada/India/UK/France/Italy/Brazil), Tuya does not support

    Unlock methods

    Smart phone, Fingerprint, password, RFID card, Key override

    Wireless supported

    TT Lock: Bluetooth BLE (intenet available with gateway)
    Tuya: WIFI, Zigbee

    Hilight Functions

    IP66 Waterproof

    App compabilities

    Unlock/Lock
    Enrol PIN codes, RFID and fingerprint credentials and make settings
    Share eKeys to family and visitors (TTLock supports, Tuya does not support)
    Audit trail in the App to see who accessed your door and when.

    Battery

    4 X AA Alkaline Batteries - works up to 1 year (10 unlocks per day)
    Type-C port for emergency power via power bank.
    Low battery alert (within App and audible at the lock).

    Security Features:

    Incorrect attempt alert & lockout for added security.
    Anti-peep scramble code prevents the correct code from being seen
    Double verification mode: Requires two verification methods

    Access Capacity

    TTLock: 120 fingerprints / 250 passwords / 1000 cards
    Tuya: total 300
    Tuya: 4-8 digits code length
    TT Lock: 6-9 digits code length

    Operation Modes

    Passage Mode allows your door to remain open when required.
    Double verification mode: Requires two verification method

    Physical Specs

    Housing Material: Aluminum alloy
    Screen: Acrylic
    Finishing: Matte Black spray painting
    Work Temperature: -20~50°C
    Door Thickness range: 35-70mm

    Reliability & Durability

    Salt Spray Test: 98H
    Unlock Test: 100,000 Cycles
    Certification: CE
    Waterproof: IP66

    Packing & Contents

    Inner box packaage

    meas: 45*20*13cm;       Volume G.W.: 5 KGS

    Carton package

    meas: 46.5*38*41cm;        Volume G.W.: 16.5 KGS              QTY: 6 pcs/carton

    What's in box

    front lock, back lock, mortise, strike plate,
    user manual, installation template, accessories, screw,
    2pcs cards, 2pcs mechanical keys
    • Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6 (3)
    • Fingerprint lock with hook mortise for slim sliding door and IP66 waterproof for outdoor use F6 (6)

    • Smart Lock Overview video FM880

    • Smart Lock User guide video FM880

    • Smart lock Installation guide video FM880

    Secure your thermal break aluminum doors with the F6, a fingerprint smart lock built for the outdoors. Designed specifically for thermal break aluminum sliding doors, this lock withstands even the harshest weather conditions with its IP66 waterproof rating – protecting against heavy rain, high-pressure water jets, and dust. Whether you are installing on a patio door, balcony entrance, or backyard access point, the F6 delivers reliable performance in temperatures from -20°C to 50°C.

    Durability is at the core of this lock. The aluminum alloy housing and matte black finish resist corrosion, while the 98-hour salt spray test ensures long-term reliability even in coastal environments. Tested to 100,000 unlock cycles and CE certified, this sliding door electronic lock is built to last for years of daily use. It fits door thickness from 35mm to 70mm, making it compatible with most thermal break aluminum door profiles.

    Stop carrying keys. This fingerprint smart lock offers five ways to unlock: smartphone, fingerprint, password, RFID card, and a mechanical backup key for emergencies. The fingerprint sensor provides instant one-touch access, while the anti-peep scramble code protects your password from prying eyes. As a sliding door digital lock, it gives you complete control over who enters your home. You can share permanent or temporary eKeys with family members, guests, or service providers through the app.

    Choose between two powerful platforms – TTLock or Tuya. TTLock works via Bluetooth BLE and supports remote access when paired with a gateway, plus Google Home and Alexa in select countries. Tuya offers built-in Wi-Fi and Zigbee for direct internet connection. Both apps let you lock or unlock remotely, manage access schedules, and view the audit trail to see who opened the door and when. Additional security features include double verification mode, incorrect attempt lockout, and a tamper alarm. Low battery alerts and a Type-C port for emergency power ensure you are never locked out. Whether you need a sliding door electronic lock for your home or a sliding door digital lock for a rental property, the F6 delivers rugged durability and smart convenience in any weather.

    Frequency Ask Question

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582
