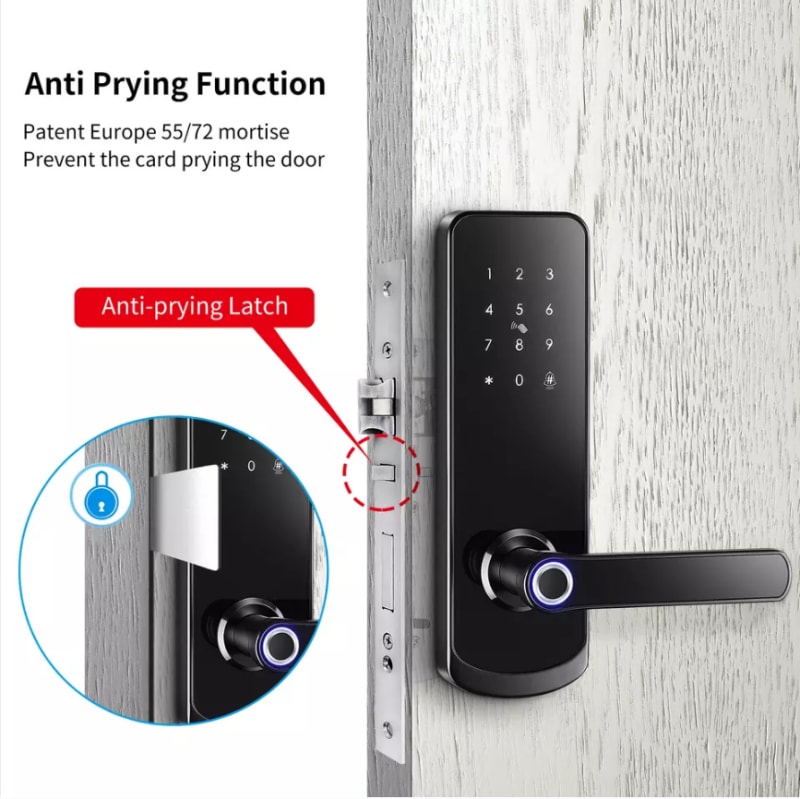

Fingerprint door lock for Front door with Anti-prying latch to prevent the card prying the door
Mortise Locks
smart lock lock 2.jpg
smart lock lock 3.jpg
smart lock lock 4.jpg
smart lock lock 5.jpg
smart lock lock 6.jpg

Fingerprint door lock for Front door with Anti-prying latch to prevent the card prying the door

This fingerprint smart lock is made of die cast aluminum alloy and supports TTLock ble and Tuya wifi. Features fingerprint, password, RFID, phone access and backup key. Perfect for home and rental use.

    Contact us
    product details
    product description

    description1

    description2

    Discription
    Features

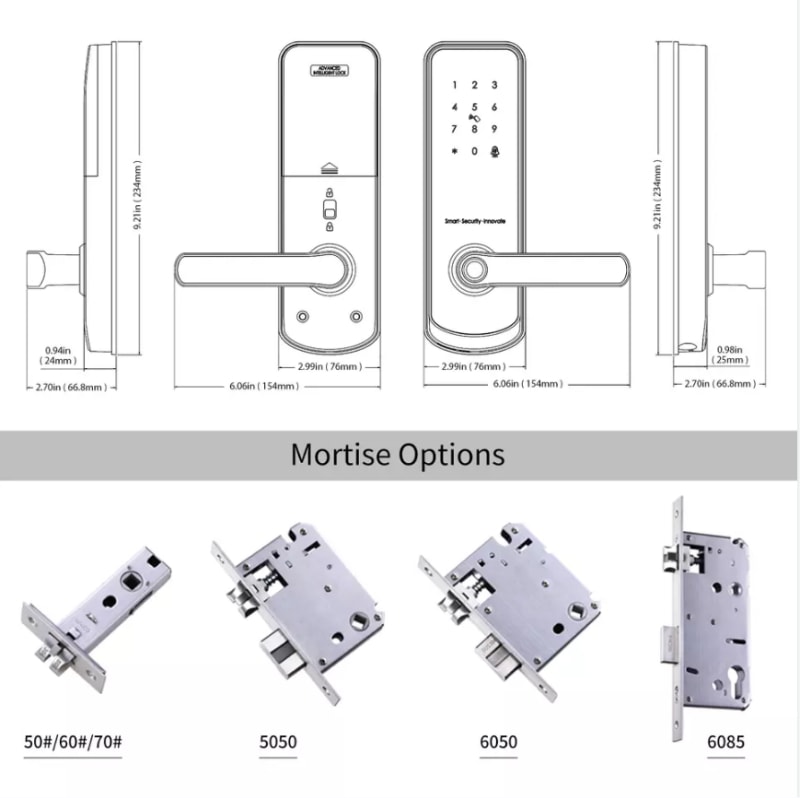

    Compatible Mortise
    FAQ
    Video Guide

    Model

    FM-230N

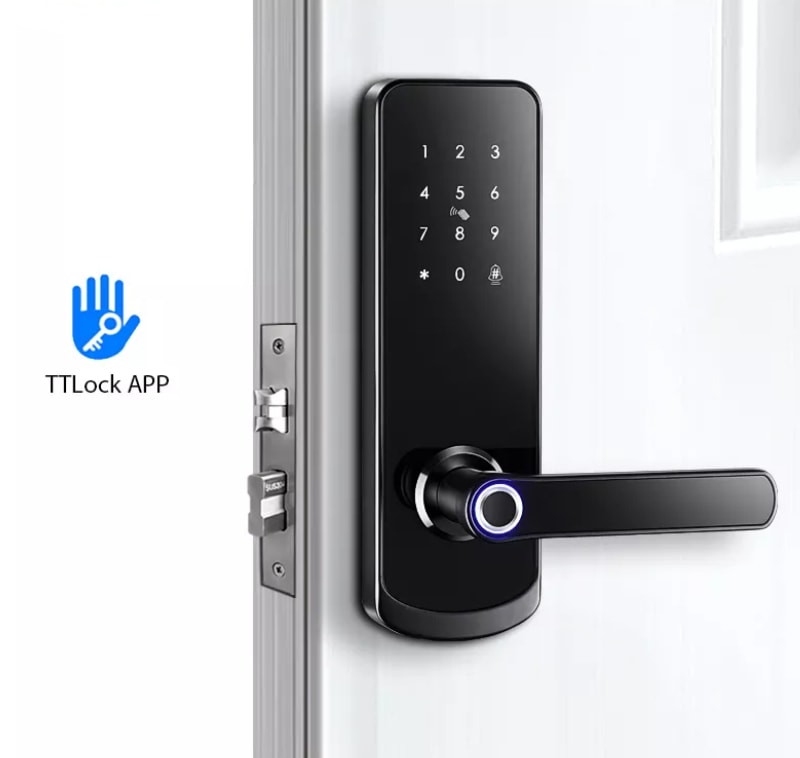

    APP options

    Tuya,TT lock
    Google Home: TTLock supports, Tuya does not support
    Alexa: TTLock supported in specific countries (USA/Australia/Canada/India/UK/France/Italy/Brazil), Tuya does not support

    Unlock methods

    Smart phone, Fingerprint, password, RFID card,  Key override

    Wireless supported

    TT lock Bluetooth BLE (intenet available with gateway)
    Tuya WIFI

    Hilight Functions

    Adjustable  handle direction,

    Die casting Aluminum Alloy Material

    App compabilities

    Unlock/Lock
    Enrol PIN codes, RFID and fingerprint credentials and make settings
    Share eKeys to family and visitors.
    Audit trail in the App to see who accessed your door and when.

    Battery

    4 AA battery works for 1 year (10 unlocks per day)

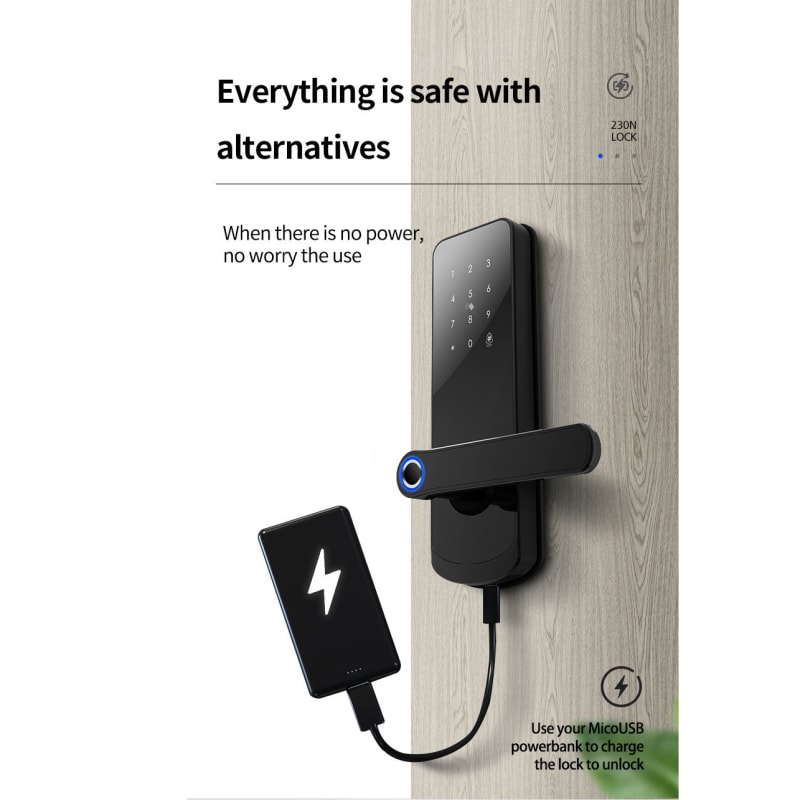

    Micro-USB port for emergency power via power bank.
    Low battery alert (within App and audible at the lock).

    Security Features:

    Incorrect attempt alert & lockout for added security.
    Anti-peep scramble code prevents the correct code from being seen
    Privacy switch on internal lock assembly locks out all access except Administrator and override key.
    Passage Mode

    Access Capacity

    TT lock  version capacity:100 fingerprint,200 card,150 password
    Tuya Version capacity:100 fingerprint/password+card=150
    Code Length:  Tuya :6-8 Digits   TTLock :6-9 Digits

    Operation Modes

    Passage Mode

    Physical Specs

    Housing Material: Die Casting Aluminum alloy
    Screen: tempered glass
    Finishing: Spray painting
    Work Temperature: -20℃-50℃
    Door Thickness range: 38-55mm

    Reliability & Durability

    Salt Spray Test: 98H
    Unlock Test: 100,000 Cycles

    Packing & Contents

    Inner box packaage

    meas: 38*22*13cm;            G.W.: 2 KGS

    Carton package

    meas: 63*38*39cm;              G.W.: 17.5 KGS              QTY: 9 pcs/carton

    What's in box

    Front lock
    Back lock
    Instruction manual
    Drilling diagram
    2 keys
    2 cards
    Accessories
    60/70 Mortise
    • smart lock lock 2
    • smart lock lock 6

    • Smart Lock Overview video FM880

    • Smart Lock User guide video FM880

    • Smart lock Installation guide video FM880

    Secure your home with the FM-230N, a fingerprint smart lock that offers flexibility and durability in one package. This thumbprint door lock works with both TTLock and Tuya apps, giving you the freedom to choose your preferred platform. TTLock connects via Bluetooth BLE and supports remote access when paired with a gateway, plus Google Home and Alexa in select countries including the USA, Australia, Canada, India, the UK, France, Italy, and Brazil. Tuya offers built-in Wi-Fi for direct internet connection. As a finger scan door lock, it puts complete control in your pocket – lock or unlock remotely, manage access schedules, and view the audit trail to see who opened the door and when.

    Built with a die cast aluminum alloy housing and tempered glass screen, this thumb scan door lock is designed for lasting durability. The spray painting finish resists corrosion, backed by a 98-hour salt spray test. Tested to 100,000 unlock cycles, this lock is built for years of reliable daily use. It fits door thickness from 38mm to 55mm and operates in temperatures from -20°C to 50°C.

    Stop carrying keys. The FM-230N offers five ways to unlock: smartphone, fingerprint, password, RFID card, and a mechanical backup key for emergencies. The fingerprint sensor provides instant one-touch access, while the anti-peep scramble code protects your password from prying eyes. You can share permanent or temporary eKeys with family members, guests, or service providers through the app.

    Security features include incorrect attempt lockout, double verification mode, and a privacy switch that locks out all access except the administrator and override key. Passage mode lets you keep the door unlocked during busy events. Low battery alerts and a Micro-USB port for emergency power ensure you are never locked out. Whether you need a thumbprint door lock for your front door or a finger scan door lock for a rental property, the FM-230N delivers convenience and security for any home.

    Frequency Ask Question

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582

    Q1 Is this lock waterproof?
    -- No, but we have other waterproof model, such as FM581, FM582
